ST-101E current overload thermal protector temperature control protection switch converter motor circuit breaker European style Australian style socket
Home / Product / Resettable current overload protector / ST-101E Shell bakelite series / ST-101E current overload thermal protector temperature control protection switch converter motor circuit breaker European style Australian style socket
ST-101E current overload thermal protector temperature control protection switch converter motor circuit breaker European style Australian style socket

ST-101E current overload thermal protector temperature control protection switch converter motor circuit breaker European style Australian style socket

  • Technical Parameter:
    1. Rated current (A): minimum 5A, maximum 16A
    2. Working voltage (V): minimum 12V, maximum 250V
    3. AC and DC dual-use

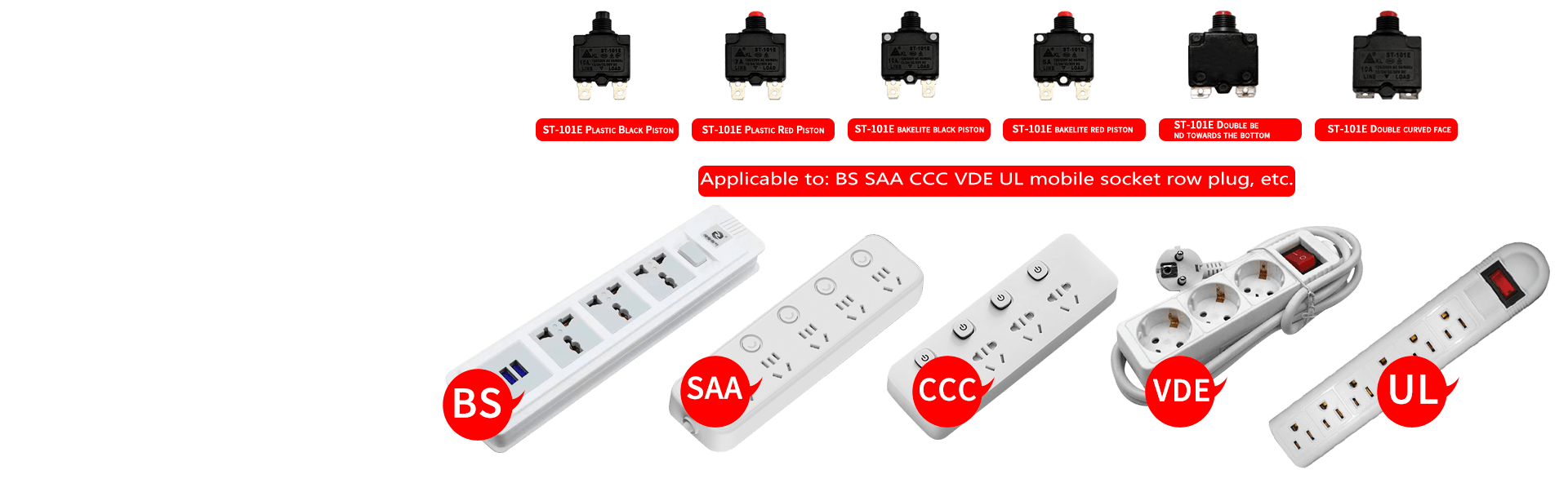

    Scope of use: It is used for multi-functional protection occasions such as computer sockets, combined sockets, power converters, instruments, multi-functional motor sockets, and small generators.
    This product series has passed European TUV and CQC certification
    Existing specifications: 5A, 7A, 10A, 13A, 15A, 16A

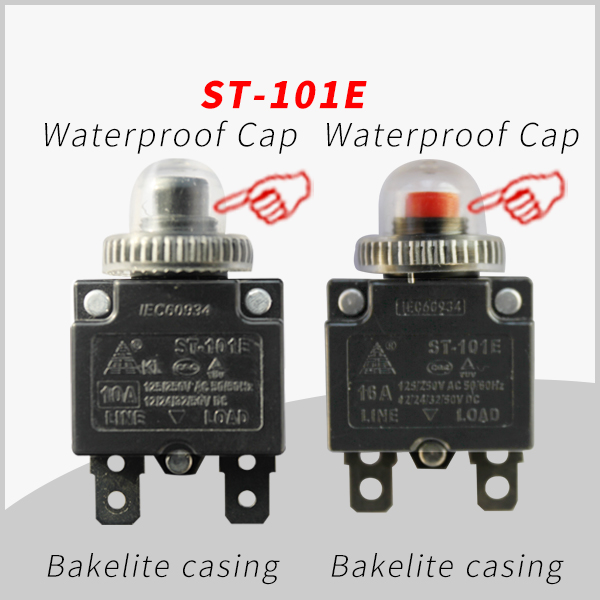

  • st-101e胶木+防水帽主图英文-1

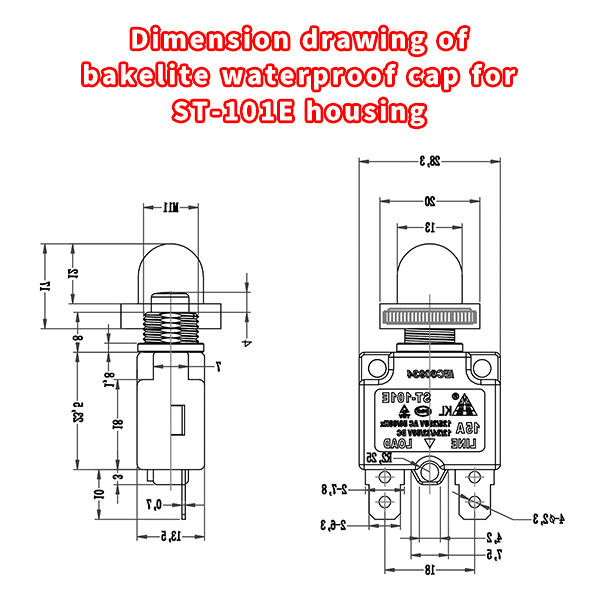

  • st-101e胶木+防水帽尺寸英文
  • Product description
Custom processing: Yes Item number: ST-101E bakelite shell 15A16A Brand: Cray
Model:
ST-101E (15A16A bakelite silver plated)
 Type: Overcurrent protector Use:
Combination socket
Volume: small Voltage characteristics: low pressure Shape: Insert
Fusing speed: T/slow Implementation standard: Good luck Automatic reset function: none
Maximum voltage: 250 （V） Maximum current: 30-78A（A） Holding current: 10A（A）
Operating temperature: 150 (℃) Temperature control range: plus or minus 5 degrees (℃) Whether cross-border export special supply source: no
Specification: Bakelite 10A, Bakelite 16A Application areas:
Electrician
