ST-101A Manual reset current overload protector for mobile socket strip converter
Home / Product / Resettable current overload protector / ST-101A series / ST-101A Manual reset current overload protector for mobile socket strip converter
ST-101A Manual reset current overload protector for mobile socket strip converter

ST-101A Manual reset current overload protector for mobile socket strip converter

  • Technical parameter:
    1. Rated current (A): 10A
    2. Working voltage (V): minimum 12V, maximum 250V
    3. AC and DC dual use

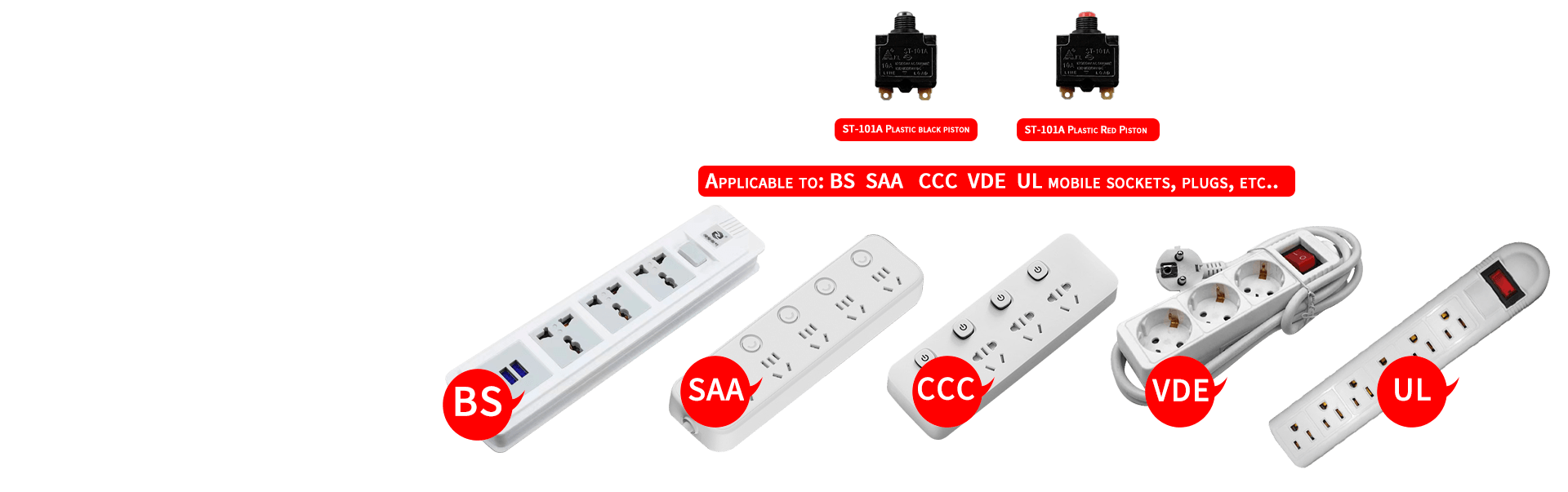

    Scope of use: It is used for multi-functional protection occasions such as computer sockets, combined sockets, power converters, instruments, multi-functional motor sockets, and small generators.
    This product series has passed European TUV and CQC certification
    Existing Specifications: 10A
  • st-101a英文-1
  • st-101a尺寸图英文
  • Product description
Custom processing: Yes Item number: ST-101A (plastic case) 5A Brand: Shixin
Model: ST-101A  Type: Overcurrent protector Use: electricity
Volume: small Voltage characteristics: low pressure Shape: Insert
Fusing speed: T/slow Implementation standard: Good luck Automatic reset function: none
Maximum voltage: 250 （V） Maximum current: 60（A） Holding current: 10A（A）
Operating temperature: 280 (℃) Temperature control range: 20-30 (℃) Whether cross-border export special supply source: no
