ST-1013 Miniature Circuit Breaker Thermal Protection Overload Protector Switch for Vehicle Miniature Circuit Breaker DC Motor Protection
Home / Product / Self-resetting circuit breaker / ST-1013 series / ST-1013 Miniature Circuit Breaker Thermal Protection Overload Protector Switch for Vehicle Miniature Circuit Breaker DC Motor Protection
ST-1013 Miniature Circuit Breaker Thermal Protection Overload Protector Switch for Vehicle Miniature Circuit Breaker DC Motor Protection

ST-1013 Miniature Circuit Breaker Thermal Protection Overload Protector Switch for Vehicle Miniature Circuit Breaker DC Motor Protection

  • Technical parameter:
    1. Rated current (A): minimum 10A, maximum 50A
    2. Working voltage (V): minimum 12VDC, maximum 60VDC
    Product application range: Widely used in the overcurrent protection occasions of electrical products such as electrical appliances in the automotive industry, winches, DC power supply appliances, electric vehicles, chargers, motors, etc.
    Available specifications: 10A, 12A, 15A, 20A, 25A, 30A, 35A, 40A, 45A, 50A

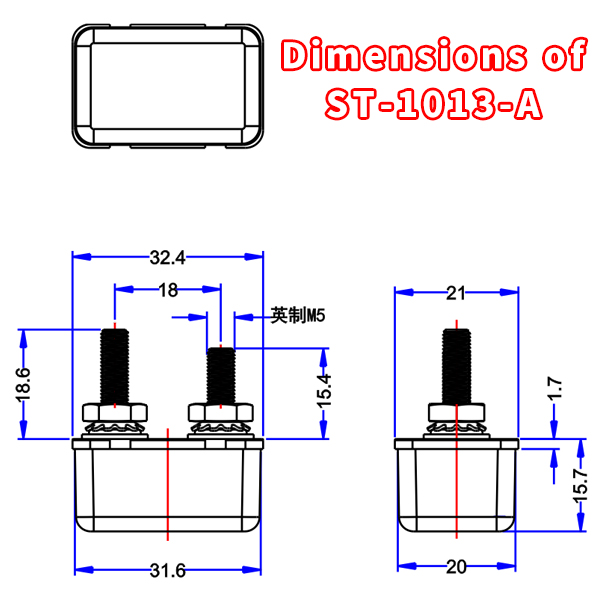

  • st-1013a外形尺寸英文
  • st-1013a主图中英文通用-2
  • Product description
Custom processing:
Yes
 Item number:
ST-1013A
 Brand:
Cray
Model:
ST-1013
 Type:
Overcurrent protector
 Use:
car
Volume:
miniature
 Voltage characteristics:
low pressure
 Shape:
Spiral
Fusing speed:
T/slow
 Implementation standard:
Enterprise standard
 Automatic reset function:
Have
Maximum voltage:
250 （V）
 Maximum current:
50（A）
 Holding current:
10-50（A）
Temperature control range:
Minus 15 to plus 40 (℃)
 Whether cross-border export special supply source:
no
 Application areas:
Military/Aerospace
Circuit breaker type MCB series ST-1013 (Metal Shell) Arc extinguishing medium
air
Operating temperature: 150 (℃)
