ST-001 long three-legged two-in-one current overload protection switch with light thermal protection temperature control American socket (color can be customized)
Home / Product / Single current overload protection switch / ST-001 series / ST-001 long three-legged two-in-one current overload protection switch with light thermal protection temperature control American socket (color can be customized)
ST-001 long three-legged two-in-one current overload protection switch with light thermal protection temperature control American socket (color can be customized)

ST-001 long three-legged two-in-one current overload protection switch with light thermal protection temperature control American socket (color can be customized)

  • Technical parameter:
    1. Rated current (A): minimum 5A, maximum 16A, customized maximum current 16A
    2. Working voltage (V): minimum 125V, maximum 250V
    3. AC and DC dual use
    Existing specifications: 10A, 15A
    Customized Specifications: 5A, 7A, 8A, 12A, 13A, 16A
    Scope of use: It is used for multi-functional protection occasions such as computer sockets, combined sockets, power converters, instruments, multi-functional motor sockets, and small generators.
  • st-001长脚三个脚英文

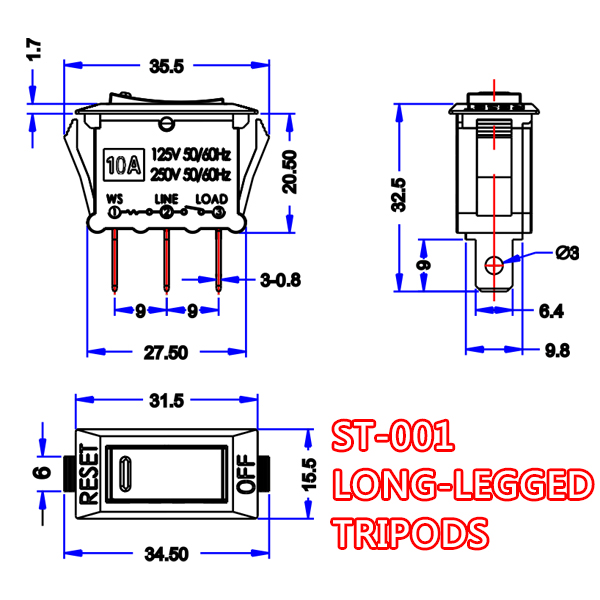

  • st-001长脚三个脚尺寸图英文
  • Product description
Custom processing:
no
 Item number:
ST-001 Long tripod
 Brand:
Cray
Model:
ST-001 Long tripod
 Type:
Temperature Switches
 Use:
mobile socket
Volume:
small
 Voltage characteristics:
low pressure
 Shape:
Insert
Fusing speed:
T/slow
 Implementation standard:
Good luck
 Automatic reset function:
Have
Maximum voltage:
125-250 （V）
 Maximum current:
 5-16（A）
 Holding current:
5-16（A）
Operating temperature:
25 (℃)
 Insulation withstand voltage test:
1500
 Whether cross-border export special supply source:
no
Application areas:
Electrician
