KSD-302D temperature control switch thermal protector current overload protector suitable for European cable tray mobile socket
Home / Product / Thermal control / KSD-302D series / KSD-302D temperature control switch thermal protector current overload protector suitable for European cable tray mobile socket
KSD-302D temperature control switch thermal protector current overload protector suitable for European cable tray mobile socket

KSD-302D temperature control switch thermal protector current overload protector suitable for European cable tray mobile socket

  • 1. Main technical parameters: 10-16A/250V/56℃±5℃ (special specifications can be customized)
    2. Terminal connection method: see the figure;
    3. Scope of use: It is mainly installed in the reel socket connector, and can also be used in various places for temperature control protection such as household electrical equipment and similar electrical equipment;
    Fourth, the main protection function: prevent the use of excessive current, make the wire temperature too high, and play the role of thermal protection;
    Five, KSD-302 temperature control switch, the product has passed the TUV quality certification.
  • ksd-302d主图英文

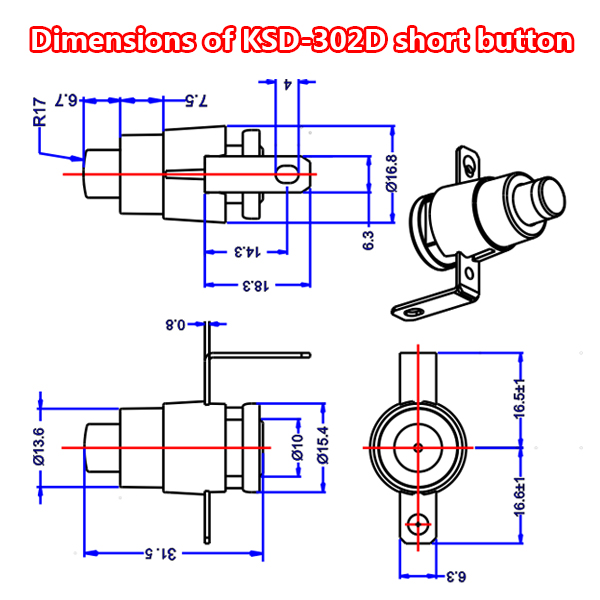

  • ksd-302d短按钮尺寸英文

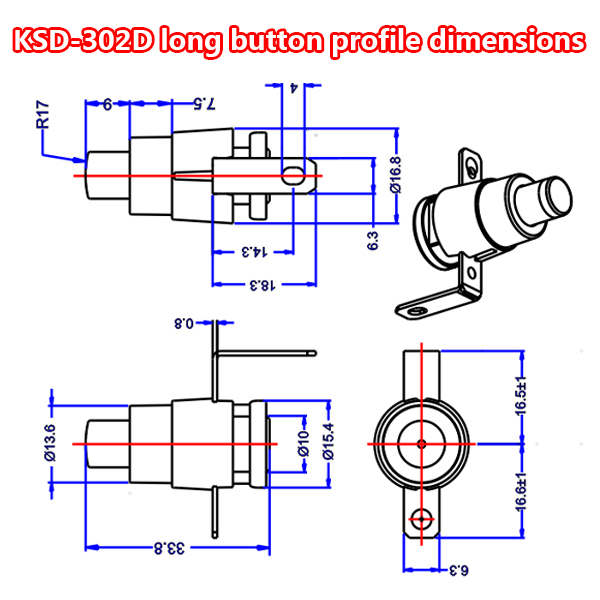

  • ksd-302d长按钮尺寸英文
  • Product description
Custom processing:
Yes
 Item number:
KSD-302D (customized)
 Brand:
Cray KL
Model:
KSD-302D
 Type:
Temperature Switches
 Use:
electricity
Volume:
small
 Voltage characteristics:
low pressure
 Shape:
Insert
Fusing speed:
T/slow
 Implementation standard:
European regulations
 Automatic reset function:
none
Maximum voltage:
250 （V）
 Maximum current:
20（A）
 Holding current:
16（A）
Temperature control range:
plus or minus 5 (℃)
 Whether cross-border export special supply source:
no
 Application areas:
socket cable reel lighting electronics
Operating temperature: 56 and 63 (℃)
