CX-002 Double four-legged second gear rocker switch power switch boat switch

CX-002 Double four-legged second gear rocker switch power switch boat switch

  • Technical parameter:
    1. Rated current (A): minimum 5A, maximum 16A
    2. Working voltage (V): minimum 12V, maximum 250V
    3. AC and DC dual-purpose use range: combination of European-style, Korean-style sockets, power converters, motor protection and other occasions.
    Scope of application: CX-002 is suitable for micro-switches for overload protection of various electromechanical products. It has perfect functions and is easy to use. Usually used in power strips, with neon light indication, for household appliances, motors, etc. CX-002 overload switch has dual functions of overload and switch and dual overload protection function. Compared with similar products, this product has the advantages of good hand feeling, crisp sound, strong breaking ability and good decoupling consistency.
    Existing specifications: 10A, 16A

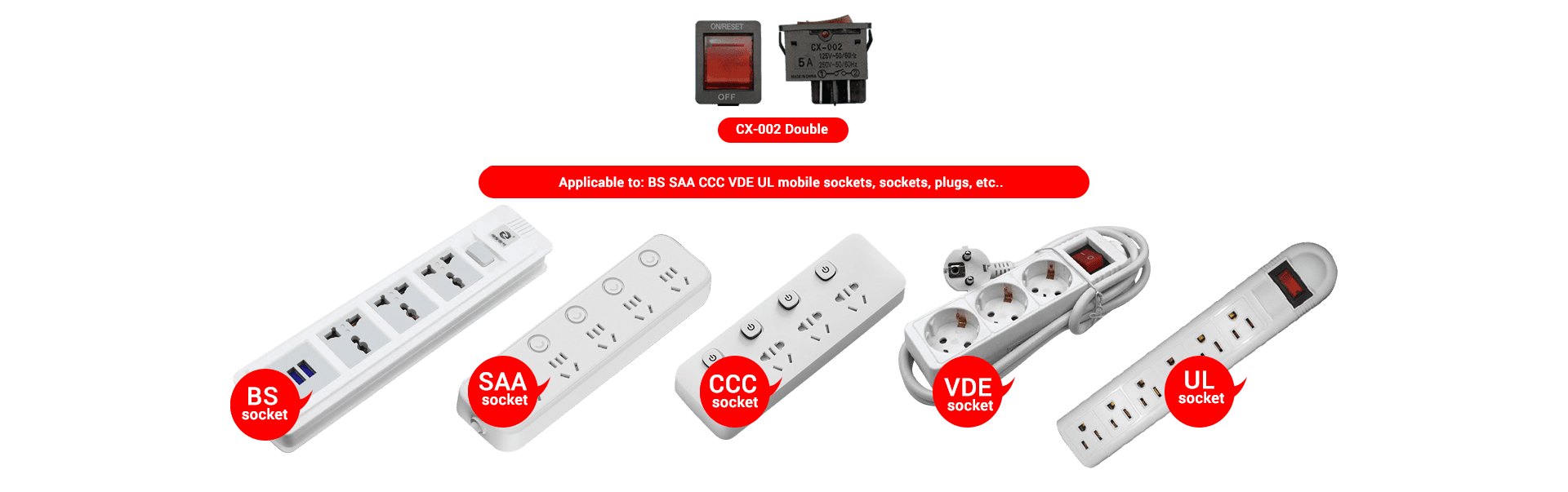

    Application range: AC and DC dual-purpose, combined European and Korean sockets, power converters, motor protection and other occasions.
  • cx-002主图英文

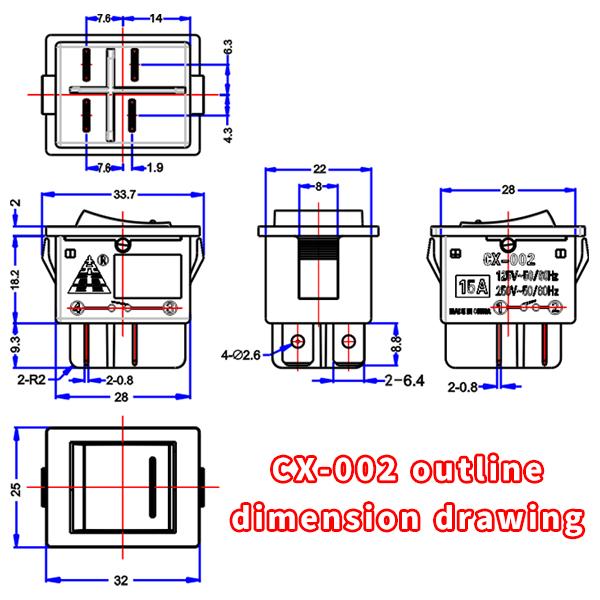

  • cx-002外形尺寸英文
  • Product description
Custom processing:
no
 Item number:
CX-002-16A
 Brand:
Cray
Model:
CX-002
 Type:
Overheat protector
 Use:
Current Protection/Power On/Off
Volume:
miniature
 Voltage characteristics:
low pressure
 Shape:
Insert
Fusing speed:
T/slow
 Implementation standard:
IEC 60934:2000
 Automatic reset function:
none
Maximum voltage:
250 （V）
 Maximum current:
16（A）
 Holding current:
5-16（A）
Operating temperature:
260 (℃)
 Temperature control range:
-20-+40（℃）
 Whether cross-border export special supply source:
no
Application areas:
household appliances
 Protective use: Current protection Operation method: manual
